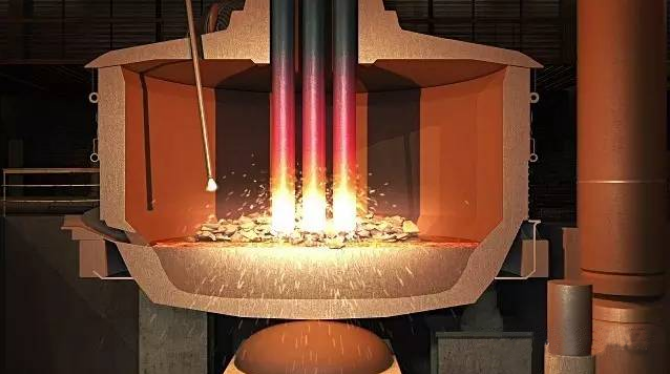

Ordinary power electric furnaces are equipped with ordinary power graphite electrodes, high power electric furnaces are equipped with high power graphite electrodes, and ultra-high powerelectric furnaces are equipped with ultra-high power graphite electrodes.For AC steelmaking electric arc furnaces, 10~30t electric furnaces are equipped with a diameter of 300~400mm graphite electrode, 30~50t electric furnaces are equipped with a diameter of 450mm graphite electrode, 60~80t electric furnaces are equipped with a diameter of 500mm graphite electrode, 100~170t electric furnaces are equipped with a diameter of 550~600mm graphite electrode, 200t electric furnace with a diameter of 600~700mm graphite electrode, 250~300t electric furnacewith a diameter of 700mm graphite electrode.
For DC steel-making electric arc furnaces, the 30t electric furnace is equipped with a diameter of 450mm graphite electrode, the 60t electric furnace is equipped with a diameter of 500mmgraphite electrode, the 70-80t electric furnace is equipped with a diameter of 600mm graphite electrode, the 100130t electric furnace is equipped with a diameter of 700mm graphite electrode, and the 150t electric furnace is equipped with a diameter of 750mm graphite electrode.
