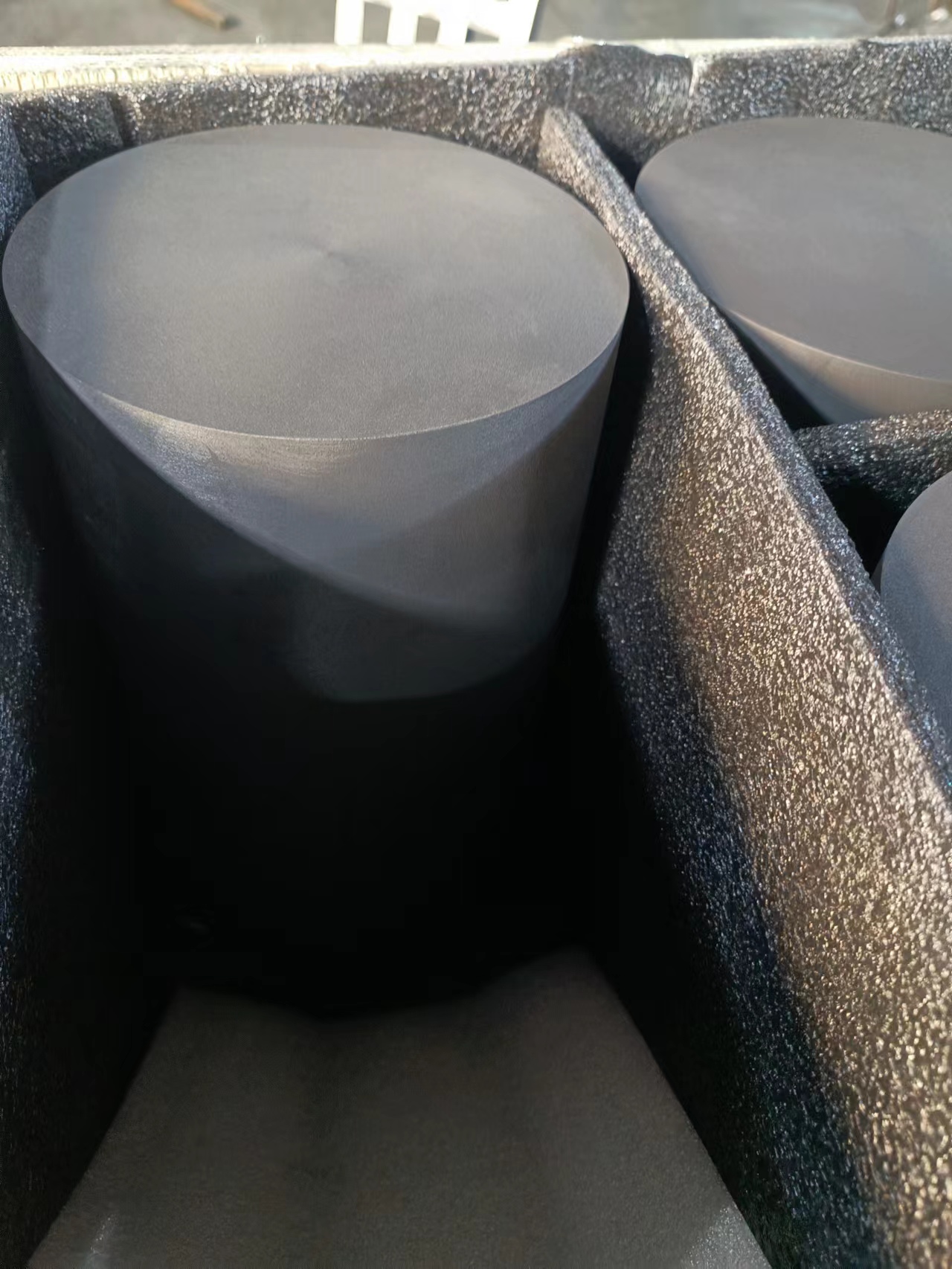

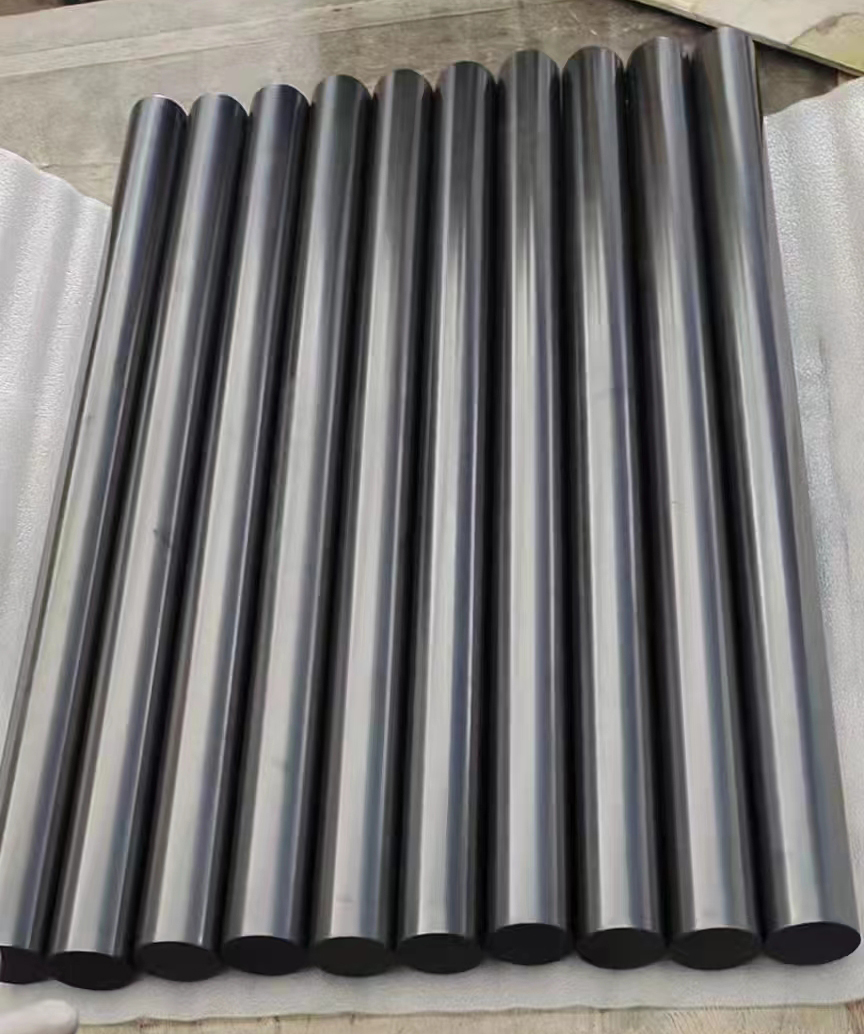

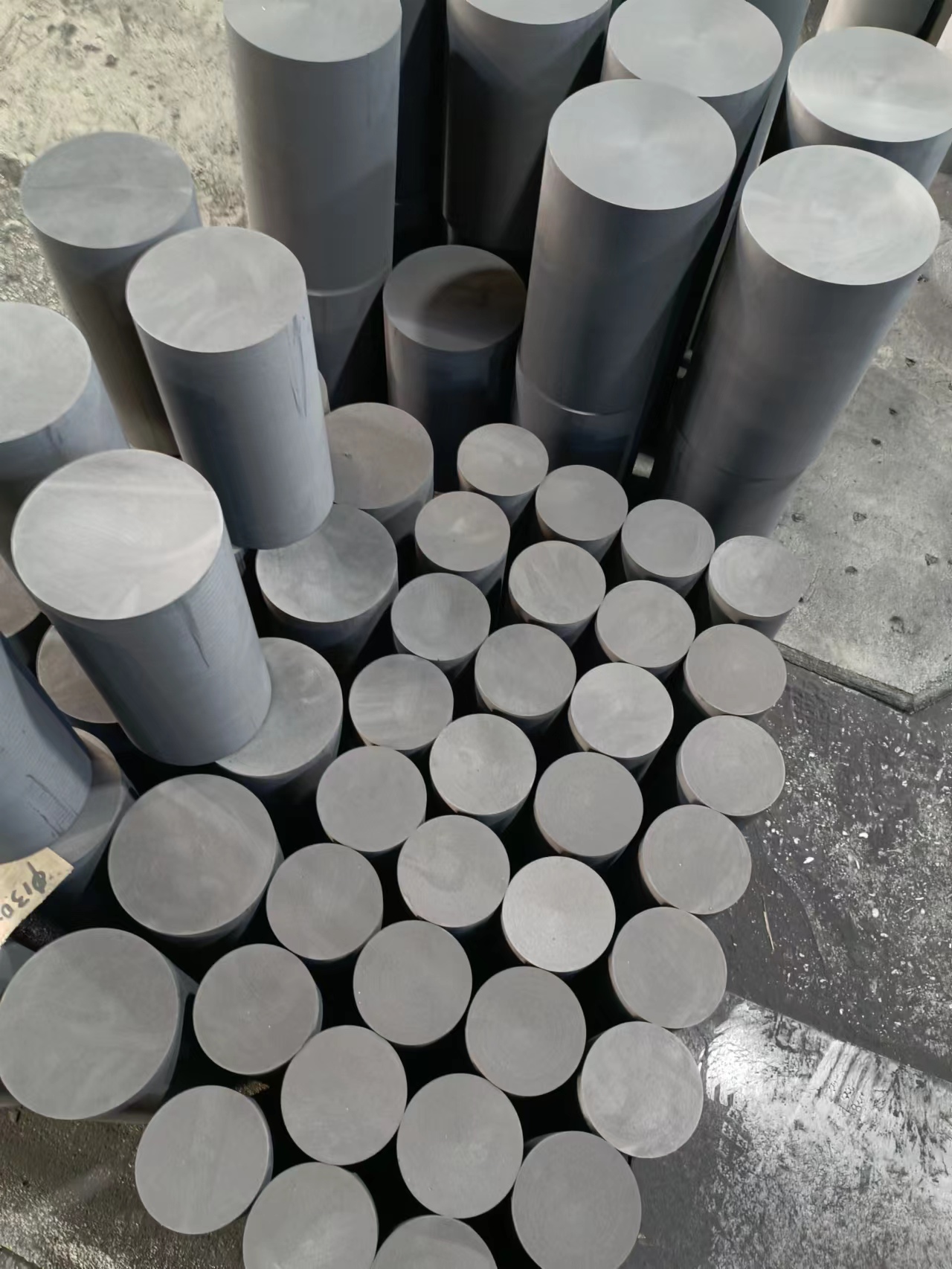

high purity graphite rod(customized production)

Short Description:

The raw material of high purity graphite rod has large carbon content and small particle size than ordinary graphite rod, and the particle size is generally 20 nanometers to 100 nanometers. It is characterized by high strength, high density, high purity, fine particle size, high chemical stability, dense and uniform structure, high temperature conductivity, more wear-resistant than ordinary graphite rod, self-lubrication, easy processing and so on.

Send email to us

Product Detail

Product Tags

Hebei Hexi Carbon Co., LTD. High purity graphite rod product physical and chemical index reference table.

New energy vehicles, continuous casting and other industries used in the performance of molded graphite materials
Brand	Density	Electrical resistivity	Conductivity of heat	Coefficient of thermal expansion (room temperature -600℃)	Shore’s hardness	Flexural strength	Compressive strength	Modulus of elasticity	ash	Purified ash content
	g/cm3	µΩm	W/m.k	10-6/℃	HSD	Mpa	Mpa	Gpa	PPM	PPM
HX-5	1.80	8~10	125	4.9	45	40	80	9.5	500	50
Performance specifications of isostatic pressed graphite materials for high temperature casting and hydrogen fuel cell bipolar plate industry
Brand	Density	Electrical resistivity	Conductivity of heat	Coefficient of thermal expansion (room temperature -600℃)	Shore’s hardness	Flexural strength	Compressive strength	Modulus of elasticity	ash	Purified ash content

	g/cm3	µΩm	W/m.k	10-6/℃	HSD	Mpa	Mpa	Gpa	PPM	PPM
HX-5P	1.90	8~10	135	3.6	55	55	105	12	500	50
Performance index of isostatic pressed graphite materials for photovoltaic industry
Brand	Density	Electrical resistivity	Conductivity of heat	Coefficient of thermal expansion (room temperature -600℃)	Shore’s hardness	Flexural strength	Compressive strength	Modulus of elasticity	ash	Purified ash content
Brand	g/cm3	µΩm	W/m.k	10-6/℃	HSD	Mpa	Mpa	Gpa	PPM	PPM
HX-4	1.72	10~13	100	5	40	30	65	9.2	500	50
HX-6	1.81	11~14	120	4.5	60	45	90	10.5	500	50

Properties of isostatic pressed graphite materials used in EDM industry
Brand	Density	Electrical resistivity	Shore hardness		Rockwell hardness	Flexural strength	Average grain size
Brand	g/cm3	µΩm	HSD		HRL	Mpa	μm
KYX-7	1.76	12~16	40		94	40	8
KYX-60	1.78	12~16	45		100	45	4
KYD-8	1.84	12~16	70		105	55	6

3D hot bending glass and other industries with isostatic pressed graphite material performance indicators
Brand	Density	Electrical resistivity	Conductivity of heat	Coefficient of thermal expansion (room temperature -600℃)	Shore’s hardness	Flexural strength	Compressive strength	Modulus of elasticity	Average grain size
Brand	g/cm3	µΩm	W/m.k	10-6/℃	HSD	Mpa	Mpa	Gpa	μm
KYD-9	1.88-1.92	10~14	110	3.9	75	60	125	12	2
KYD-30	1.81	15~19	80	5.8	80	43	130	7.5	12
KYX-700	1.85	12~16	105	4	55	50	105	10	8
KYX-60S	1.85	12~16	110	4	60	55	120	11	4
